This Part will focus on creating a web api that could be called by our AngularJs application (in part 4) or by an Other client like an MVC application (we will create it in part 5).

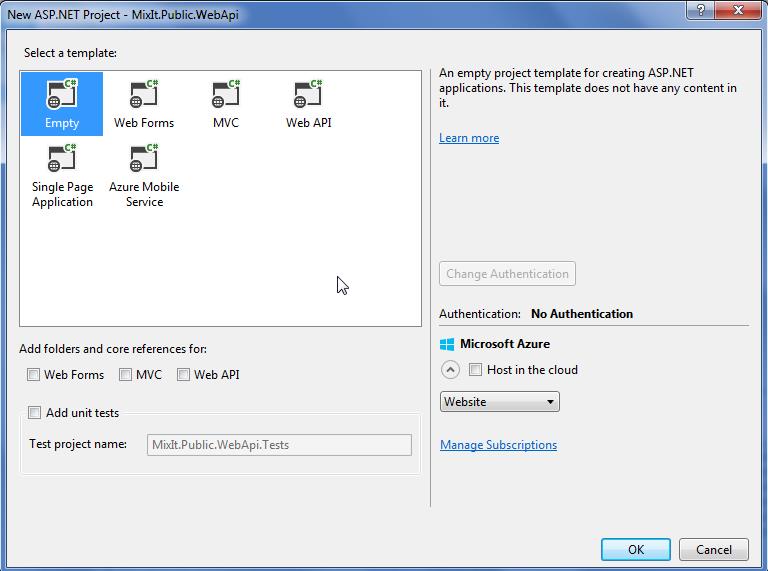

Step 1 : create an empty web project

Step 2 : add the required Nuget package

for Owin

install-package Microsoft.Owin.Host.SystemWeb
install-package Microsoft.AspNet.WebApi.Owin
install-package Microsoft.AspNet.WebApi.Cors
install-package Thinktecture.IdentityServer.v3.AccessTokenValidation

cors are added so ajax call can call this api from different origins and the AccessTokenValidation is used to validate the token we receive with Identityserver v3.

Step 3 : Create the Controller

Here, we will create the Resource class that represents the Resources to be "protected" (for whom we need a consent of the owner to get access to...)

[code language="csharp"][routeprefix("resource")] public class ResourceController : ApiController { [Route("{id}")] public IHttpActionResult Get(long id) { var res = from element in Resource.GetDummyList() where element.Id == id select element;

        if (res == null)
        {
            return NotFound();
        }

        return Json(res);
    }
}

[/code]

The controller has a simple Get Method that returns a resource based on its ID.

Step 4 : Create the Startup.cs class

here we just init the webapi.

    public class Startup
    {
        public void Configuration(IAppBuilder app)
        {
            var config = new HttpConfiguration();
            config.MapHttpAttributeRoutes();

            app.UseWebApi(config);
        }
    }

Step 5 : Test it

Run the project and go to : http://localhost:14117/resource/2

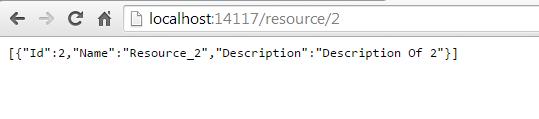

you should see something like this:

So far ... so good ....

Step 6 : add Authorize

Now that our Api is working we will add some protection to it. Remember inpart 1, we've added a scope to our Scopes.cs class named '_publicApi'. _

This scope wil be required by the caller to be allowed to call this api. so when asking for a token to the Identity server, we need to add the scope publicapi.

for this we need to add in our Startup.cs that we will use Bearer Token Authentication using our Identity server. We also need to add the authorize attribute to our controller

[code language="csharp"]

-- In Startup.cs

 ...
 app.UseIdentityServerBearerTokenAuthentication(
     new IdentityServerBearerTokenAuthenticationOptions
 {
       Authority = "https://localhost:44305/identity",
       RequiredScopes = new[] { "publicApi" }
 });
 ...

-- In ResourceController.cs

[RoutePrefix("resource")]
[EnableCors(origins: "*", headers: "*", methods: "*")]
[Authorize]
public class ResourceController : ApiController
{
...

[/code]

N.B. : The url might be different in your case.

Step 7 : Test with fiddler

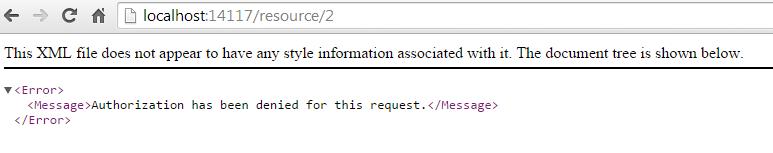

recall in Part 1 that we've tested the installation to get a Token, we will use the same to get a Bearer Token and use it to call our public web api. All that with fiddler. But first let's replay Step 5 and call : http://localhost:14117/resource/2 if everything is configured well, you should see:

So, first let's get a token from identity server using fiddler like we did in part 1

Issue the following Post

-------------------
Post :

https://localhost:44305/identity/connect/token

Headers:
User-Agent: Fiddler
Content-Type: application/x-www-form-urlencoded
Authorization: Basic SWRlbnRpdHlXZWJVSTpzZWNyZXQ=

Body:
grant_type=password&username=test&password=test&scope=openid publicApi
------------------

I got an access token:

{"access_token":"eyJ0eXAiOiJKV1QiLCJhbGciOiJSUzI1NiIsIng1dCI6ImRyRklQZDg1ZDB3RldzRzhlcHM3VkllWkRVTSIsImtpZCI6ImRyRklQZDg1ZDB3RldzRzhlcHM3VkllWkRVTSJ9.eyJjbGllbnRfaWQiOiJJZGVudGl0eVdlYlVJIiwic2NvcGUiOlsib3BlbmlkIiwicHVibGljQXBpIl0sInN1YiI6ImVjMmEwMjUwLTY3ZjMtNDQxMS04YTk4LTIyYmE4NjVkMjdjZSIsImFtciI6InBhc3N3b3JkIiwiYXV0aF90aW1lIjoxNDE5Njc0MjQ5LCJpZHAiOiJpZHNydiIsImlzcyI6Imh0dHBzOi8vaWRzcnYzL21peGl0IiwiYXVkIjoiaHR0cHM6Ly9pZHNydjMvbWl4aXQvcmVzb3VyY2VzIiwiZXhwIjoxNDE5Njc3ODQ5LCJuYmYiOjE0MTk2NzQyNDl9.SM0wRw2nfg2KNIwTNM8CT5wCjG5oZl-02Xk6X8aWX9Thy7yBlRJK_ZIFCPzhRPYZJj9G4-iAJ9i3I3Jgu1iqZzLtubsjhOjDL3G9064sOprI86nEyMG_GDNGjL3kO45BmUUAQIqrrojrN8Nv0DR1BArW7Q1ajNg1oSTUe7BkUrbIRsJ-A8oJESs7_O8ScGizt94mDZhGwYqtgZ6zj0J7L-mdIk8nVl1YZ94GFoJddP5Lqud8CQYGYFu5VXMMmUrdFJ1l-ZcZLhoHYS9N0T7XFE2RtPFKUaT_jZNI_xHtwVCJK5ZzTmTSKZMbpjXcCBQyodb9P48pLxWG-CFR3K5OyZ9mfQsaJssF2QQTVwEkdDMRz_k8yajzFiyEr58PC_3qo56pybfUXshs04MH2dKmEYv7FTmno2h2fR_KUuOnuzRYLp1NLg-sY_BEtN4x8fGcH9NEgCo9L7pxZ3_PuEyA-Dm1Q6c2Gst8Om3seiq3KuJ0nlcF0o6OqxPI3halp8BZlDYvUoZeFcB1YOSA4gR4MR4gjZPknBriH-zZKk6JDAptTmI5CeAXxf7VjHBye-R-H663NtjNgm42sbYm77yHFJjci15-3DvZaAJHs90Kbmqdwf1CbXMRrzSIfOctxuamTQSvF4zAbhIhminfeI_gUbjSpkVwZqtUqqdAxcngNeE","expires_in":3600,"token_type":"Bearer"}

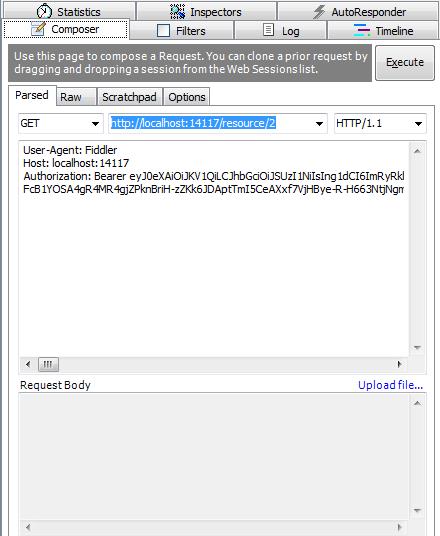

Now I will use this token to call my public api.

[code] Request

Get : http://localhost:14117/resource/2

Headers: User-Agent: Fiddler Host: localhost:14117 Authorization: Bearer eyJ0eXAiOiJKV1QiLCJhbGciOiJSUzI1NiIsIng1dCI6ImRyRklQZDg1ZDB3RldzRzhlcHM3VkllWkRVTSIsImtpZCI6ImRyRklQZDg1ZDB3RldzRzhlcHM3VkllWkRVTSJ9.eyJjbGllbnRfaWQiOiJJZGVudGl0eVdlYlVJIiwic2NvcGUiOlsib3BlbmlkIiwicHVibGljQXBpIl0sInN1YiI6ImVjMmEwMjUwLTY3ZjMtNDQxMS04YTk4LTIyYmE4NjVkMjdjZSIsImFtciI6InBhc3N3b3JkIiwiYXV0aF90aW1lIjoxNDE5Njc0MjQ5LCJpZHAiOiJpZHNydiIsImlzcyI6Imh0dHBzOi8vaWRzcnYzL21peGl0IiwiYXVkIjoiaHR0cHM6Ly9pZHNydjMvbWl4aXQvcmVzb3VyY2VzIiwiZXhwIjoxNDE5Njc3ODQ5LCJuYmYiOjE0MTk2NzQyNDl9.SM0wRw2nfg2KNIwTNM8CT5wCjG5oZl-02Xk6X8aWX9Thy7yBlRJKZIFCPzhRPYZJj9G4-iAJ9i3I3Jgu1iqZzLtubsjhOjDL3G9064sOprI86nEyMGGDNGjL3kO45BmUUAQIqrrojrN8Nv0DR1BArW7Q1ajNg1oSTUe7BkUrbIRsJ-A8oJESs7O8ScGizt94mDZhGwYqtgZ6zj0J7L-mdIk8nVl1YZ94GFoJddP5Lqud8CQYGYFu5VXMMmUrdFJ1l-ZcZLhoHYS9N0T7XFE2RtPFKUaTjZNIxHtwVCJK5ZzTmTSKZMbpjXcCBQyodb9P48pLxWG-CFR3K5OyZ9mfQsaJssF2QQTVwEkdDMRzk8yajzFiyEr58PC3qo56pybfUXshs04MH2dKmEYv7FTmno2h2fRKUuOnuzRYLp1NLg-sYBEtN4x8fGcH9NEgCo9L7pxZ3PuEyA-Dm1Q6c2Gst8Om3seiq3KuJ0nlcF0o6OqxPI3halp8BZlDYvUoZeFcB1YOSA4gR4MR4gjZPknBriH-zZKk6JDAptTmI5CeAXxf7VjHBye-R-H663NtjNgm42sbYm77yHFJjci15-3DvZaAJHs90Kbmqdwf1CbXMRrzSIfOctxuamTQSvF4zAbhIhminfeI_gUbjSpkVwZqtUqqdAxcngNeE

Response

[{"Id":2,"Name":"Resource_2","Description":"Description Of 2"}]

[/code]

Result :
