IdentityServer.v3, MembershipReboot, AngularJs, WebApi 2 and MVC : Mix It ! : Part 4


In this part, we will create a web based UI using AngularJsand SemanticUI. I am not going to dive in details, but will explain the solution I build up to use Identityserver.v3 as the Authentication mechanism and memberShipReboot as the User Account repository.

Step 1 : create a new Empty Web Project

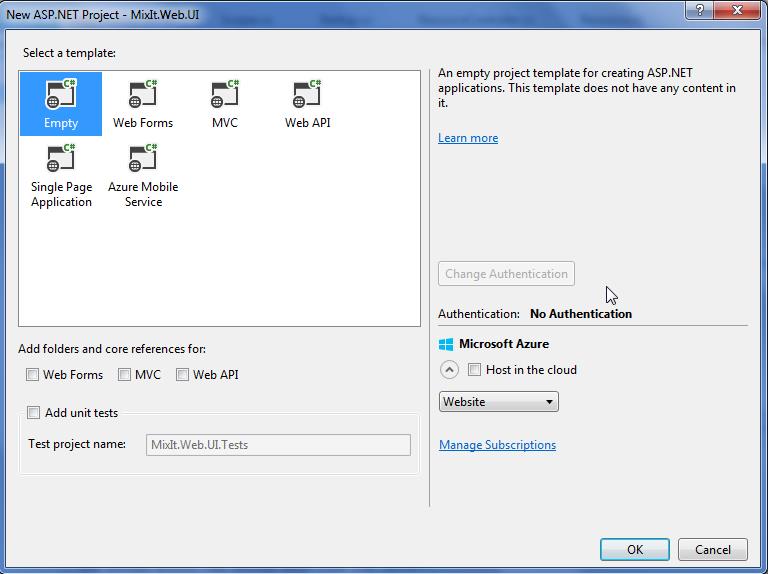

Create a new Empty web project with no authentication


Step 2 : install Semantic-UI and AngularJS

Download and extract Semantic-Ui folder. In the solution, I've created a 'content' and a 'script' folder. From the 'dist' folder located in the extracted semanti-ui file, get the themes folder and the file semantic.css. Copy them in the 'content' folder of the solution

Also get the semantic.js file in that 'dist' directory and copy it to the solution's 'script' folder.

You must also download angular.js file and angular-route.js file from angularjs web site and copy them in the script folder of the solution

N.B.: You can also use CDN for that

I also use a local storage service (https://github.com/grevory/angular-local-storage)to store the Auth token received from Identityserver.v3.

So dowload and copy that file in the script directory.

Create an index.html file and reference all these scripts. Don't forget Jquery (required for semantic-UI).

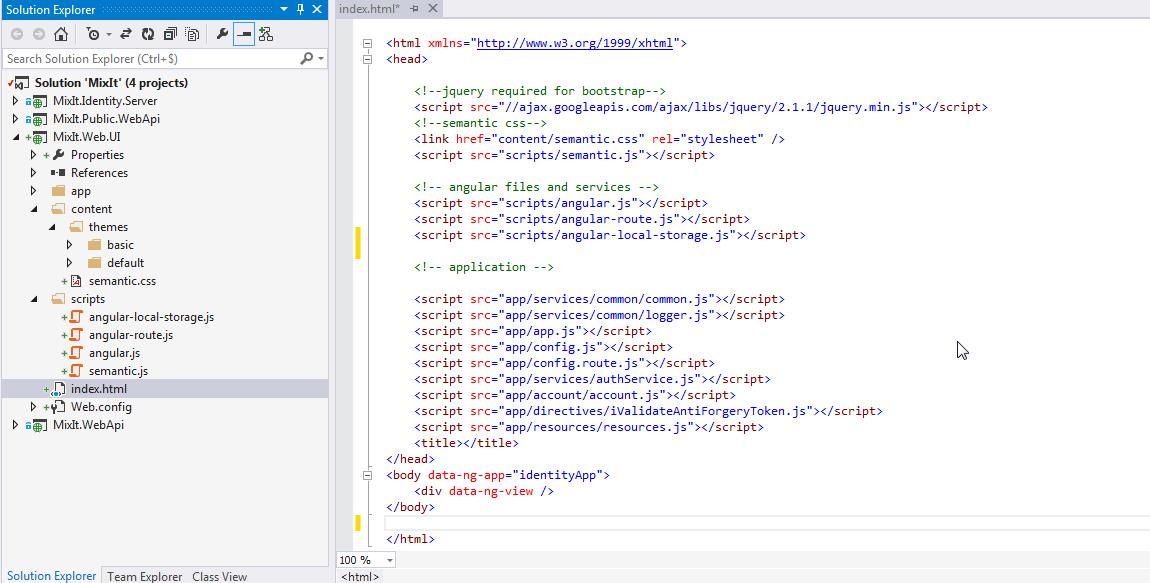

You should end up with something like this:


The app folder will contain our angularJs app. We will name it IdentityApp. Check in the body tag of the index.html file where it is referenced.

Now that all framework are configure, let's start with the angular app.

Step 3 : the angular App

If you open the app folder you will see the following:

  • the app.js file in which I reference the dependencies

[code language="javascript"] var app = angular.module('identityApp', [ 'ngRoute', 'LocalStorageModule', 'common' ]); [/code]

  • The commonservice is a convenience service (kind of a bag) that has dependencies on the logger service, the $q service. It also provides some helper methods. (This pattern is stolen from John Papa's hottowel)

  • The config.route.js file is for mapping routes to the controllers. In this application, I have 2 routes : '/account' that forwards to the account controller and template '/resources' route that forwards to the resource controller and template

  • the config.js file adds a config objects. In there, I've configured the different url to my api's and also the url to the identityserver (your urls might be different)

var apiUrl = 'http://localhost:10073/'; var idsrvUrl = 'https://localhost:44305/identity/'; var publicApiUrl = 'http://localhost:14117/' var api = { account: apiUrl + 'api/account/', connect: idsrvUrl + 'connect/token', resource : publicApiUrl + 'resource/' };

  • the account and resources directory contains both an .html file (the views) and a .js file (the controller for each view)

  • the servicesfolder contains the common and loggerservice files and also the authService.

  • The authServicecontains the methods to create accounts and also login and logout.

the create function calls our 'private api'. register: function (credentials) { return $http.post(config.api.account + 'create', { Username: credentials.userName, Password: credentials.password, Email: credentials.email }) .success(function (data, status, headers, config) { }); }, The login function get a token from the identityserver and store it in the session. [code language="javascript"] login: function (credentials) { var user = { granttype: 'password', username: credentials.userName, password: credentials.password, scope: 'openid publicApi' }; //required for Idsrv V3 call (required bys spec) var urlEncodedUrl = { 'Content-Type': 'application/x-www-form-urlencoded', 'Authorization': 'Basic SWRlbnRpdHlXZWJVSTpzZWNyZXQ=' }; return $http({ method: 'POST', url: config.api.connect, headers:urlEncodedUrl, data: user, transformRequest: function (obj) { var str = []; for (var p in obj) str.push(encodeURIComponent(p) + "=" + encodeURIComponent(obj[p])); return str.join("&"); } }).success(function (data, status, headers, config) { Session.create(data.accesstoken, credentials.userName, 'admin'); localStorageService.set('bearerToken', data.access_token); }).error(function (data, status, headers, config) { Session.destroy(); }); }, [/code] There is also an authInterceptor configured to add the beare token on each request if present. request: function (config) { console.log('bearer : '); console.log(localStorageService.get('bearerToken')); config.headers = config.headers || {}; if (localStorageService.get('bearerToken')) { config.headers.Authorization = 'Bearer ' + localStorageService.get('bearerToken'); } return config; },

  • the app/account/account.js file contains the controller that depends on the AuthService.

all function call the corresponding AuthService method and manages some scope variable for the view to display correctly. These views are only implemented to display the functionalities.

[code language="javascript"] function register(credentials) { log(credentials); AuthService.register(credentials).then(function (data, status, headers, config) { $rootScope.$broadcast(AUTHEVENTS.registrationSuccess); successLogger('registered'); resetView(); }, function () { $rootScope.$broadcast(AUTHEVENTS.registrationFailed); errorLogger('notregistered'); }); };

    function login(credentials) {
        AuthService.login(credentials).then(function () {
            $rootScope.$broadcast(AUTH_EVENTS.loginSuccess, [credentials.email]);
            successLogger('logged in ' + AuthService.isAuthenticated());
            vm.authenticated = true;

        }, function () {
            vm.authenticated = false;

    function logout() {
        vm.authenticated = false;



  • the app/resource/resource.js file just get a resource based on it's id.

if your are not authenticated the get will fail. if you are authenticated, the resource will display. Once again, the UI is really simple for convenience. The getResource method just call te $http.get() and the authInterceptor will set the bearer token if present. so we do not care about headers here.

Step 4 : Test It

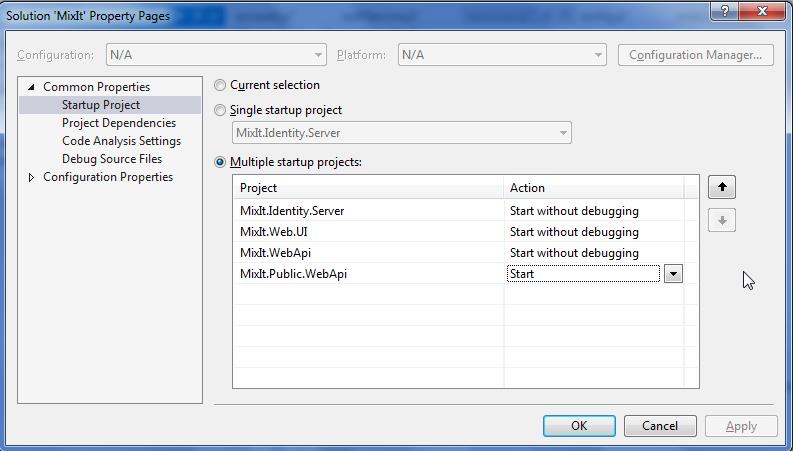

To test the application, you must run all projects together. Therfor, you need to set the solution with multiple startup project. Right click on the solution and select Set Startup Projects ...


Then hit F5

You will have 4 tabs that will open in your browser.

locate the tab showing the web UI and enter http://localhost:5101/#/resources in the adress bar.

enter '1' in the inputfield and normally, you should have the message that we could not load the resource.

now enter http://localhost:5101/#/account in the adress bar and connect with user 'test' and password 'test' (or another user you created with fiddler.

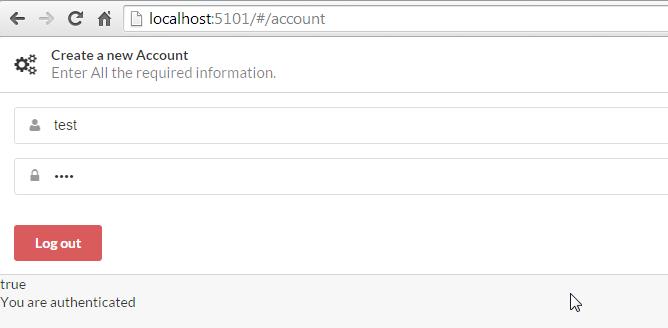

you should see this if everything went well:


then enter the following in the adress bar : http://localhost:5101/#/resources

if you cannot load the resource, then open the developer console (CTRL + SHIFT + I) and check if you have the following error:


If so, don't forget to change the Cors settings in your controller and check in startup that it's enabled.

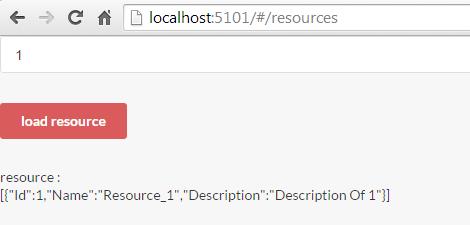

you should see the following result:

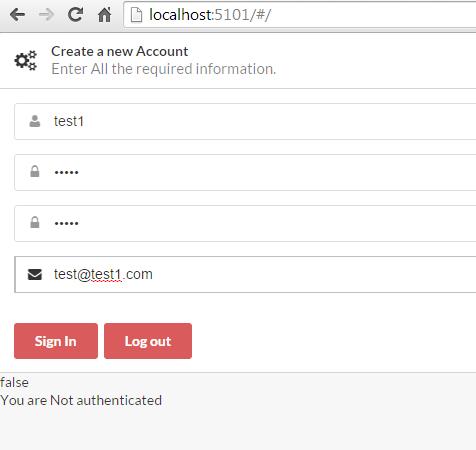

Let's create a new account (test1 with password test1)


then log into it with credentials test1/test1 and get the resource, it should go fine.

Now Here I have got  a question : Is it the right way to do it. Because here, I need to put in the client application (javascript) the clientId and client secret. I could use another flow (like implicit flow) but then the user would be redirected to a consent screen to authorize the application (I am in) to access the application. It's a bit weared here.

When I found a better way to do, I will update this doc. please feel free to add comments.
